Place of Origin:
China
ブランド名:
ANGES
Model Number:
30hp
Shenzhen Anges Machinery Co., Ltd

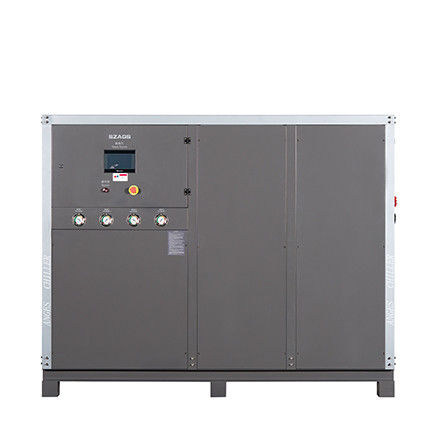

Technical Parameter of Water-cooled scrolled Type Chiller
|
Model Item |
HBW-30(D) | |
| nominal cooling capacity | Kcal/h | 86688 |
| kw | 100.8 | |
| input power | kw | 22.2 |
| power supply | 3PH~380V/50HZ | |
| refrigerant | type | R410a |
| type of control | Expansion valve | |
| compressor | type | Hermetic scroll type |
| Power (kw) | 20 | |
| condenser | type | Shell and tube |
| Cooling water flow(m3/h) | 20.9 | |
| Inlet/outlet pipe caliber(inch) | 2 | |
| evaporator | type | Shell and tube |
| Chilled water flow(m3/h) | 8.8 | |
| Tank volume(L) | 175 | |
| Inlet/outlet pipe chiller(inch) | 2-1/2 | |
| Water pump | Power(KW) | 2.2 |
| Lift(m) | 20 | |
| Safety protection | compressor over temperature, over-current protection, high and low pressure protection, over -temperature protection ,flow switch protection,phase sequence or missing phase protection,exhaust overheating protection | |
| net weight | kg | 1150 |
| Dimension | mm | 1880*910*1820 |
Note: 1. Nominal cooling capacity is according to:
Inlet chilled fluid temperature: 17℃, Outlet chilled fluid temperature: 12℃
Inlet cooling air temperature: 30℃,Outlet cooling air temperature: 35℃
2. Working Range:
The temperature range of chilled fluid is from 5℃ to 35℃;
Temperature difference between inlet and outlet chilled fluid is from 3℃ to 8℃.
It is better to run the chiller while the ambient temperature at or below 35℃.
We reserve the right to modify the above dimensions or parameters without further notice.
Configuration table for water-cooled scrolled Type Chiller
| Item | Main Parts | Brand | Origin |
| 1 | Compressor | Panasonic | Japan |
| 2 | Condenser | ANGES | China |
| 3 | Evaporator | ANGES | China |
| 4 | Drying Filter | Emerson | USA |
| 5 | Controller PCB | Punp | China |
| 6 | Electric Components | Schneider | France |
| 7 | Pressure Controller | Fensheng | China |
| 8 | Oil Pressure Gauge | Jiunai | China |
| 9 | Water Pump | Minamoto | China |
